Kaiserdrive KGU-32D Harmonic Integrated Joint Module (253 N·m rated)
Vendor: Kaiserdrive
Product: KGU-32D

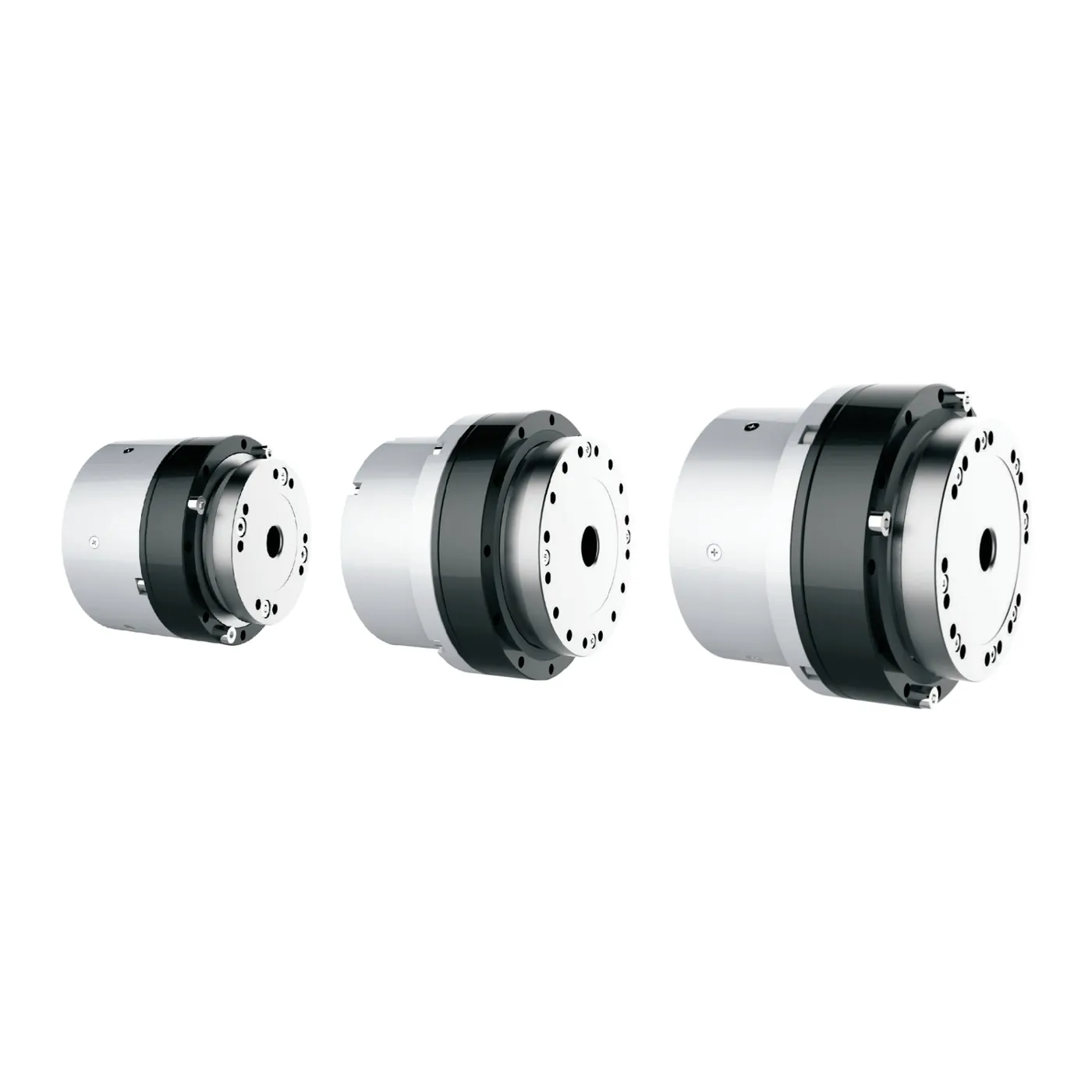

Jiangsu Kaiserdrive (subsidiary of Leaderdrive Harmonic Drive, STAR-688017) KGU robot joint module, model KGU-32D: 253 N·m rated / 498 N·m max torque, 21/30 rpm rated/max speed, 600 W rated power, 48VDC, ratio 1/121. Integrated harmonic reducer + frameless torque motor + built-in EtherCAT/CANopen servo driver + dual 20-bit single-turn absolute encoders (BiSS-C), 50 arcsec positioning / 10 arcsec repeatability, Φ23mm hollow shaft, Φ142×112mm envelope, only 5.6kg, optional power-off holding brake. For lightweight humanoid-arm joints (payload/weight ratio near 1:1); smallest joint under 350g.
| Bus | EtherCAT / CANopen |
| Model | KGU-32D |
| Weight | 5.6 kg |
| Encoder | 20bit （BiSS-C） |
| Reducer | （ 1/121） |
| Voltage | 48VDC（ 24VDC） |
| Dimensions | Φ142×112 mm |
| Gear Ratio | 1/121 |
| Peak Speed | 30 rpm |
| Protection | （F ） |
| Peak Torque | 498 N·m |
| Rated Power | 600 W |
| Rated Speed | 21 rpm |
| Vendor Site | https://www.kaiserdrive.com |
| Hollow Shaft | Φ23 mm |
| Rated Torque | 253 N·m |
| Repeatability | 10 arcsec |
| Positioning Accuracy | 50 arcsec |
