Kaiserdrive KGU-25B Harmonic Integrated Joint Module (96 N·m rated)
Vendor: Kaiserdrive
Product: KGU-25B

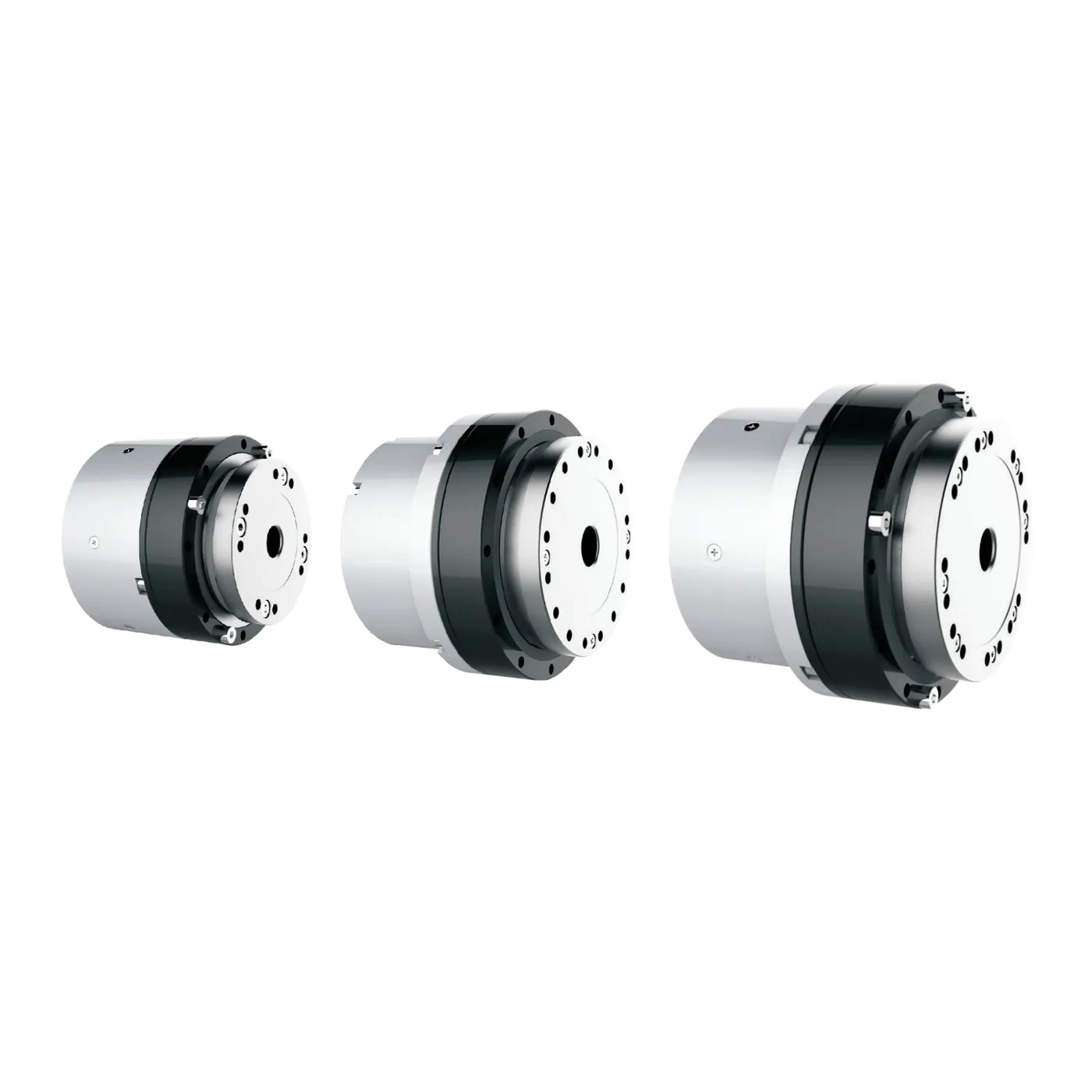

Jiangsu Kaiserdrive (subsidiary of Leaderdrive Harmonic Drive, STAR-688017) KGU robot joint module, model KGU-25B: 96 N·m rated / 160 N·m max torque, 32/50 rpm rated/max speed, 350 W rated power, 48VDC, ratio 1/81. Integrated harmonic reducer + frameless torque motor + built-in EtherCAT/CANopen servo driver + dual 20-bit single-turn absolute encoders (BiSS-C), 50 arcsec positioning / 10 arcsec repeatability, Φ16mm hollow shaft, Φ110×98mm envelope, only 2.45kg, optional power-off holding brake. For lightweight humanoid-arm joints (payload/weight ratio near 1:1); smallest joint under 350g.
| Bus | EtherCAT / CANopen |
| Model | KGU-25B |
| Weight | 2.45 kg |
| Encoder | 20bit （BiSS-C） |
| Reducer | （ 1/81） |
| Voltage | 48VDC（ 24VDC） |
| Dimensions | Φ110×98 mm |
| Gear Ratio | 1/81 |
| Peak Speed | 50 rpm |
| Protection | （F ） |
| Peak Torque | 160 N·m |
| Rated Power | 350 W |
| Rated Speed | 32 rpm |
| Vendor Site | https://www.kaiserdrive.com |
| Hollow Shaft | Φ16 mm |
| Rated Torque | 96 N·m |
| Repeatability | 10 arcsec |
| Positioning Accuracy | 50 arcsec |
