Keli Sensing JTS/NJ-K Series Joint Torque Sensors
Vendor: Keli Sensing
Product: JTS/NJ-K

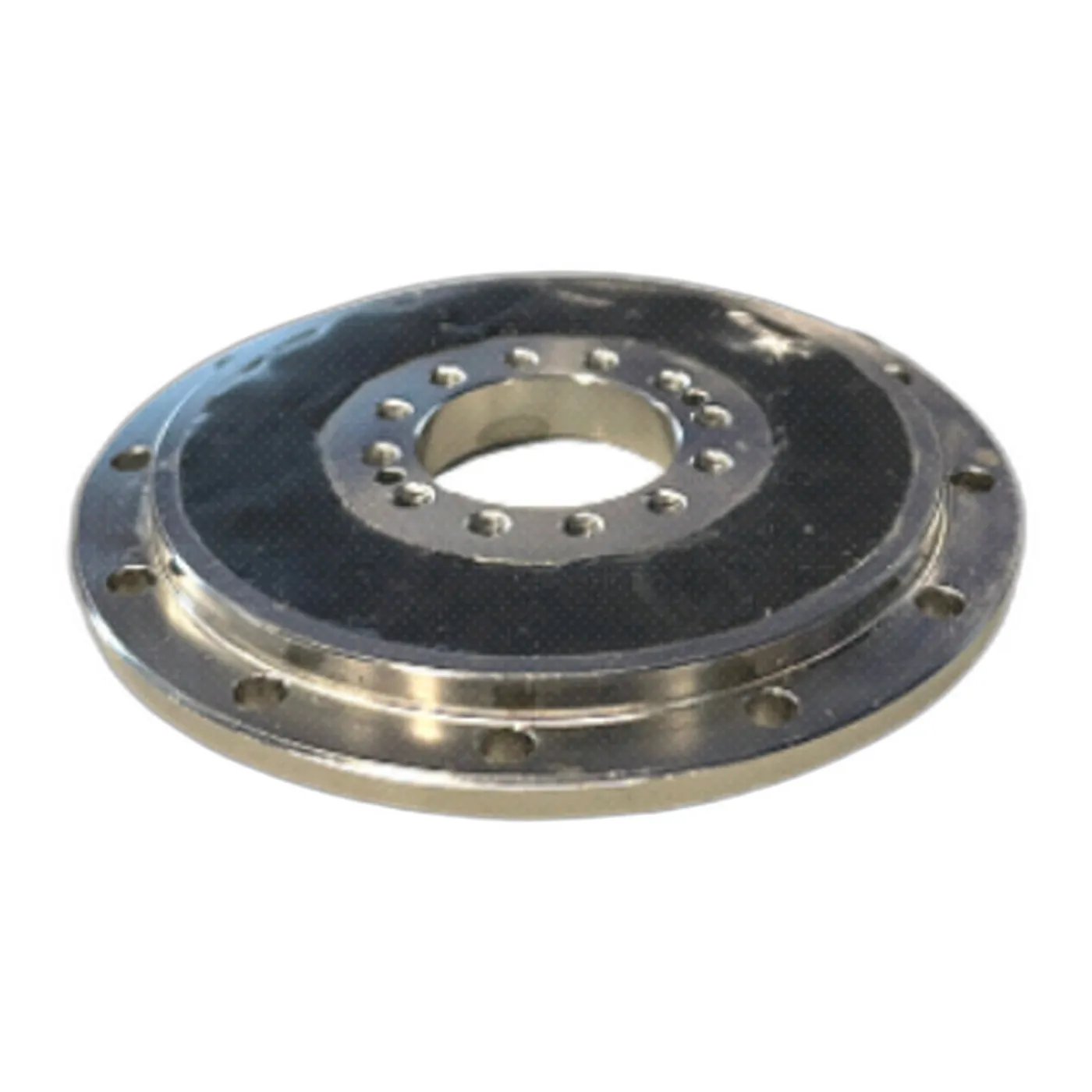

The Keli Sensing JTS/NJ-K joint torque sensors target robot-arm joint torque detection with strain-gauge precision: five ranges 50-250 N·m, sensitivity 1.3±0.2 mV/V, non-linearity ±0.5%FS, repeatability/creep ±0.1%FS, zero temp drift ±0.05%FS, IP65 sealing in alloy steel with a thin flange form (Φ72 OD, 7.2 mm thick), 300%FS safe / 500%FS ultimate overload and 5-10 V DC excitation - high torsional stiffness and strong overload resistance for cobot/industrial joint force control and test benches.
| Size | Φ72 OD x 7.2 mm thick |
| Type | joint torque sensor, strain gauge, flange mount |
| Ranges | 50 / 100 / 150 / 200 / 250 N·m |
| Overload | 300%FS safe / 500%FS ultimate |
| Impedance | input 1050±100 Ω / output 1050±10 Ω |
| Excitation | 5-10 V DC |
| Protection | IP65, alloy steel |
| Sensitivity | 1.3±0.2 mV/V |
| Non Linearity | ±0.5%FS |
| Zero Temp Drift | ±0.05%FS |
| Repeatability Creep | ±0.1%FS |
