Haydon Kerk Pittman PLG42S Planetary Gearbox (4:1-512:1)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: PLG42S
Haydon Kerk Pittman (AMETEK, USA) PLG42S is a 42 mm planetary gearbox covering ratios 4:1-512:1 in 1-3 stages: max load 3.5-14 Nm (496-1,983 oz-in), stage efficiency 90%/81%/73%, weight 270-880 g and length 47.6-71.2 mm with CW output; pairable with DC040B and other motors as gearmotors for robot joints, medical devices and precision automation.

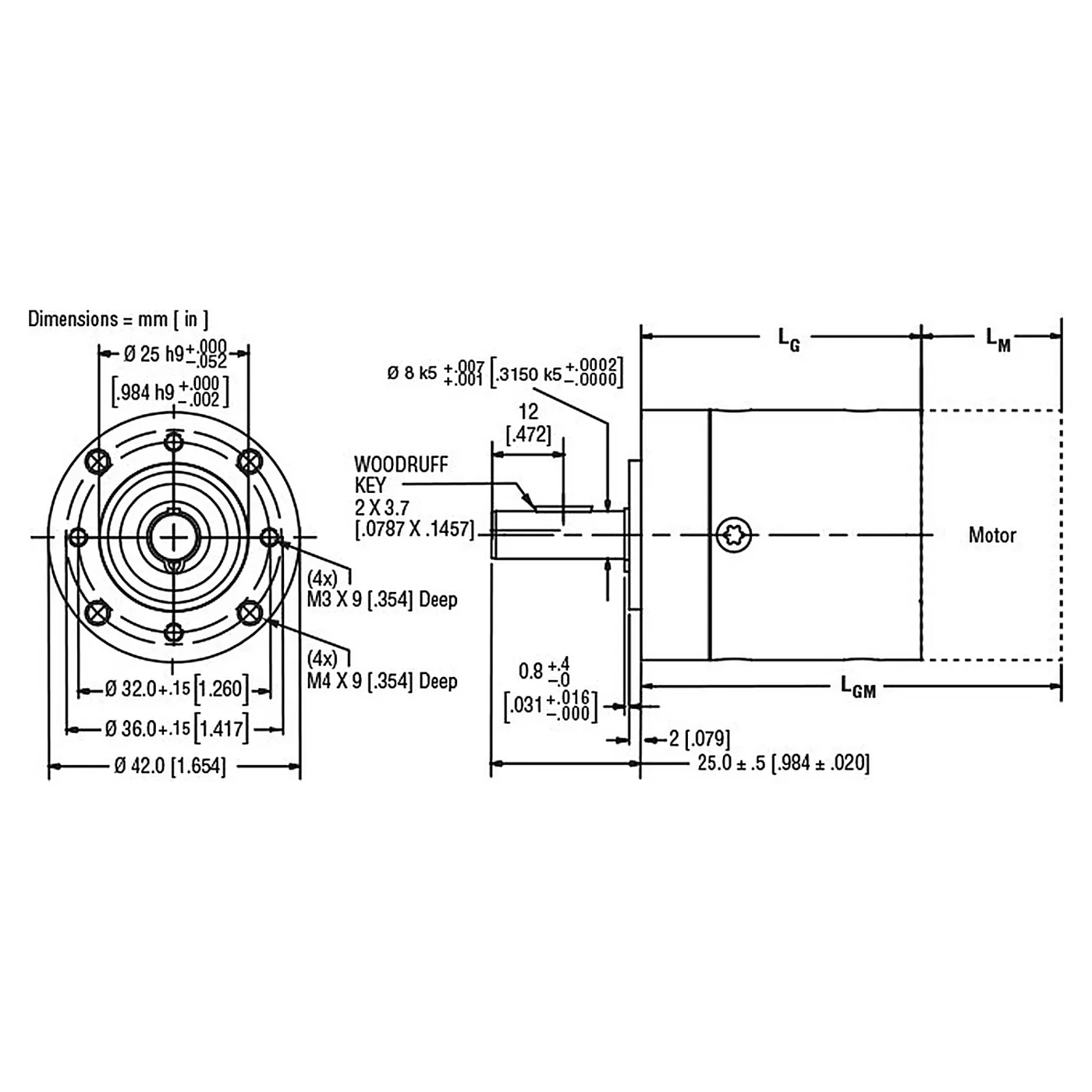

| Length | 47.6-71.2 mm |
| Weight | 270-880 g |
| Max Load | 3.5-14 Nm (496-1,983 oz-in) |
| Efficiency | 90% / 81% / 73% (1/2/3 stages) |
| Ratio Range | 4:1 - 512:1 (1-3 stages) |
