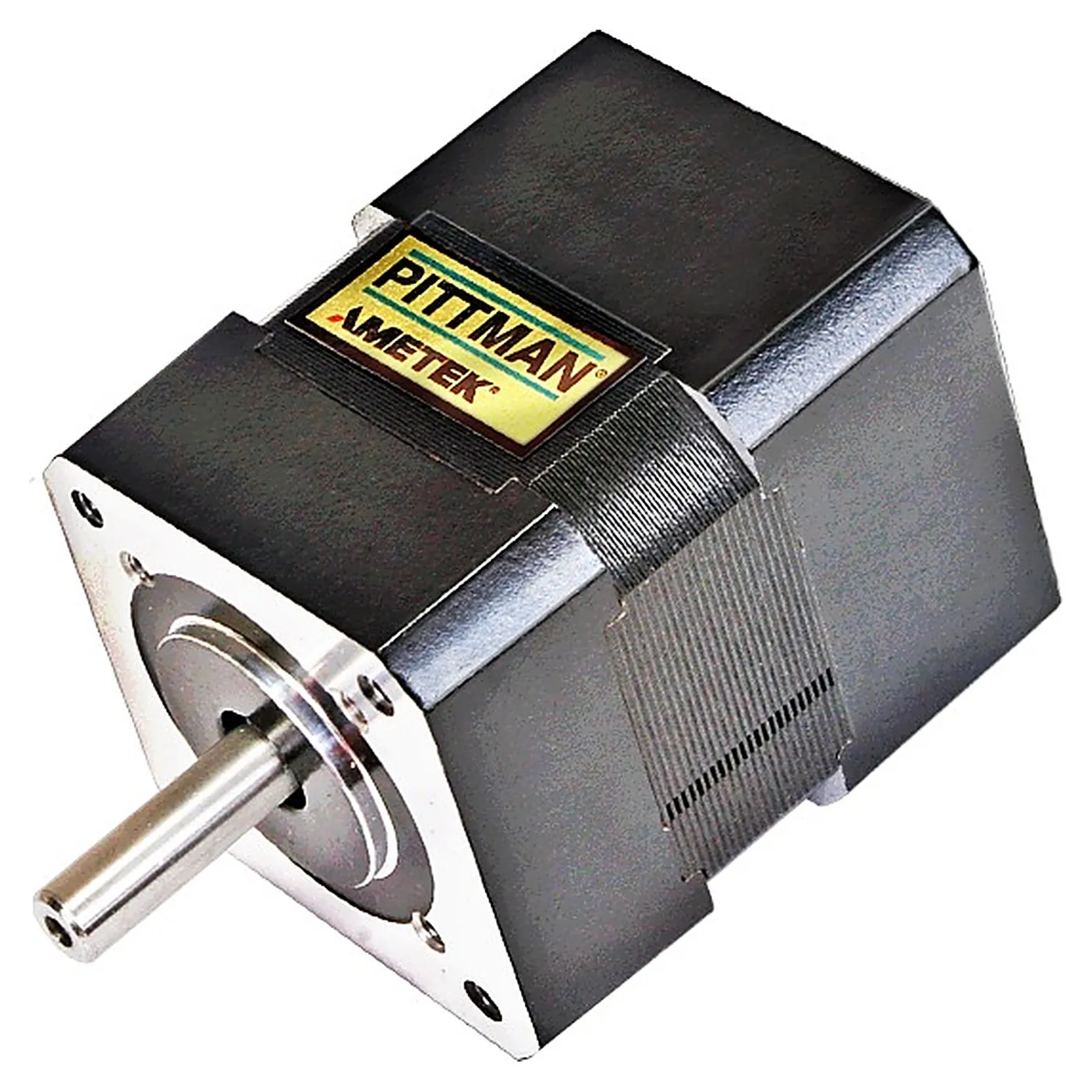

Haydon Kerk Pittman Pittman Brushless DC Motors (30-121 mm, up to 6.5 Nm)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: Pittman
Haydon Kerk Pittman (AMETEK, USA) Pittman ES/EC brushless DC motors span 30-121 mm frames: 0.025-6.5 Nm continuous torque, 9-2,000 W rated power, speeds to 15,000 RPM and bus voltages to 325 Vdc; high power density and low cogging suit robot rotary joints, AGVs, medical and lab automation, and they combine with Kerk screws for linear actuators or PLG planetary gearboxes for joint modules.
| Max Speed | 4,000-15,000 RPM |
| Frame Sizes | 30-121 mm (ES/EC series) |
| Max Voltage | 48-325 Vdc |
| Rated Power | 9-2,000 W |
| Continuous Torque | 0.025-6.5 Nm (3.5-930 oz-in) |
