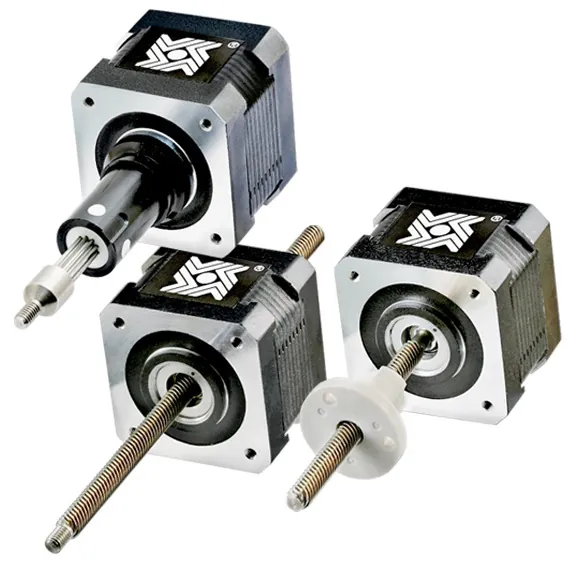

Haydon Kerk Pittman Hybrid Stepper Linear Actuators (Size 6-34 / 2224 N)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: Hybrid
Haydon Kerk Pittman (AMETEK, USA) hybrid stepper linear actuators drive a stainless modified-ACME screw/rotor nut directly, covering Size 6-34 in 12 series (16000-87000 incl. DS double-stack) with 1.5-127 µm travel per step, 2-2224 N max force, 12.7-63.5 mm captive stroke and up to 500 mm non-captive/external; reduced drivetrain parts suit semiconductor tools, medical instruments and robot Z-axis precision motion.
| Screw | stainless modified ACME, direct-drive rotor nut |
| Stroke | 12.7-63.5 mm captive; up to 500 mm non-captive/external |
| Max Force | 2-2224 N |
| Frame Sizes | Size 6-34 (12 series incl. DS) |
| Travel Per Step | 1.5-127 µm |
