Haydon Kerk Pittman G40A Spur Gearbox (4:1-864:1 / 14.12 Nm)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: G40A

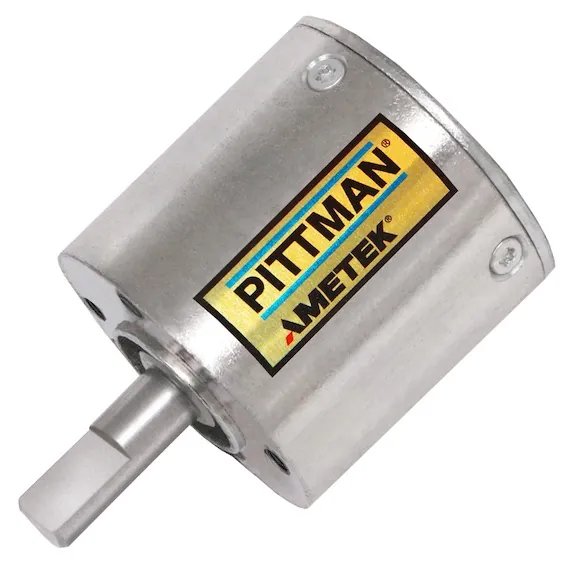

Haydon Kerk Pittman (AMETEK, USA) G40A is a Ø40 mm high-torque spur gearbox with ratios 4:1-864:1 in 1-4 stages, 14.12 Nm (2000 oz-in) max load across the range, efficiency 0.65-0.90, 255.1-425.2 g and 35.6-58.4 mm long; official gearmotor length tables cover DC040B/DC054B brushed and EC057C brushless pairings for robot joints, AGV drives and heavy positioning.
| Weight | 255.1-425.2 g |
| Max Load | 14.12 Nm (2000 oz-in) |
| Efficiency | 0.65-0.90 |
| Ratio Range | 4:1 - 864:1 (1-4 stages) |
| Motor Pairings | DC040B / DC054B / EC057C gearmotor tables |
| Gearhead Length | 35.6-58.4 mm |
