Pittman E30 Series Miniature Incremental Encoders (200-2048 CPR)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: Pittman E30

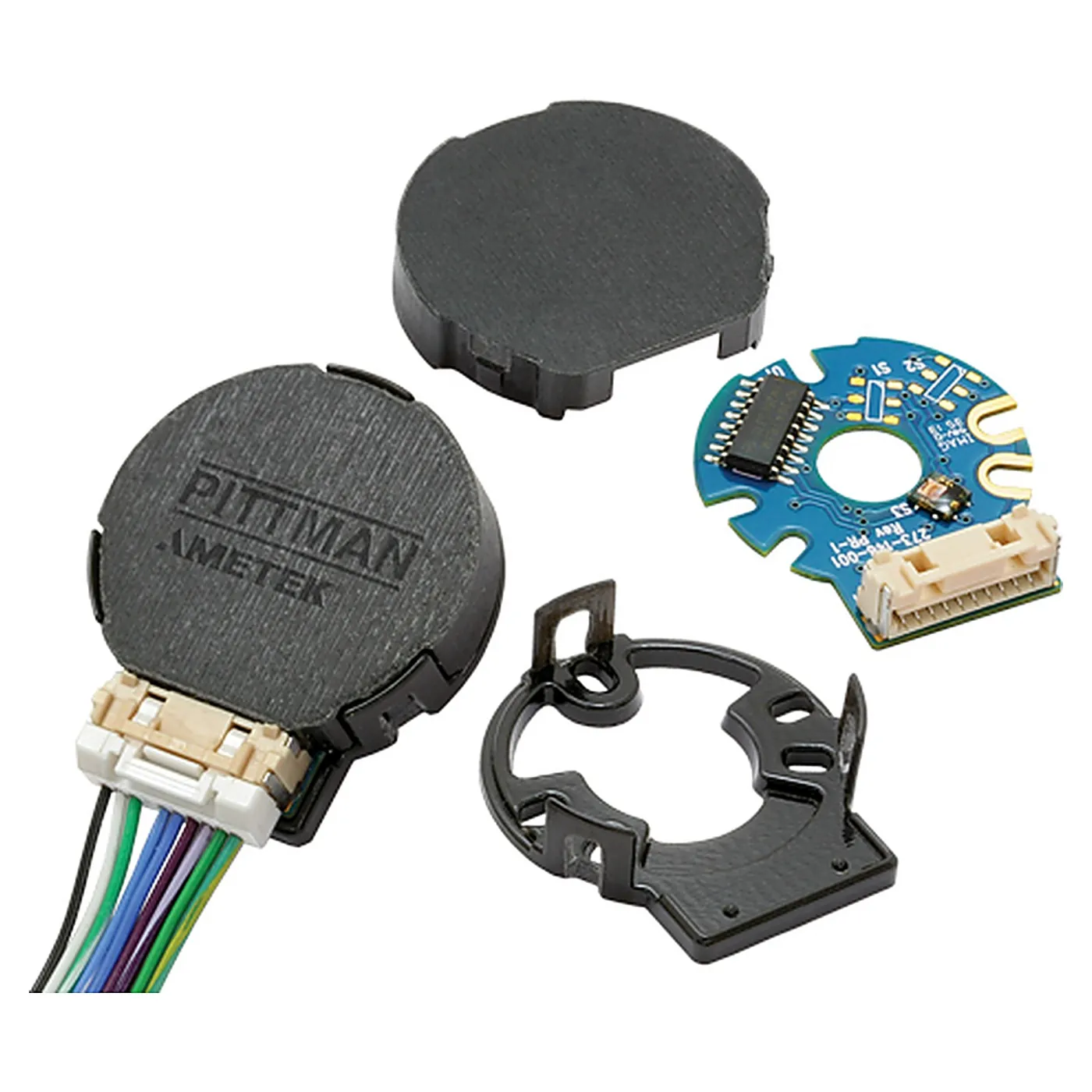

Haydon Kerk Pittman (AMETEK, USA) Pittman E30 is a miniature incremental optical encoder family: E30C offers 200-500 CPR and E30D 500-2048 CPR with 2-channel quadrature TTL outputs, Z-index on E30D and optional differential line-driver; powered from 4.5-5.5 VDC at ≤20 mA with response to 220 kHz, -20 to +85 °C operation and 5.6 g mass, mounting directly on Pittman brushed/brushless motors for closed-loop speed or position control in robot joints and precision motion.
| Mass | 5.6 g |
| Output | 2-channel quadrature TTL, optional index & differential LD |
| Resolution | 200-2048 CPR (E30C 200-500 / E30D 500-2048) |
| Max Frequency | up to 220 kHz |
| Supply Current | ≤20 mA |
| Supply Voltage | 4.5-5.5 VDC |
| Operating Temperature | -20 to +85 °C |
