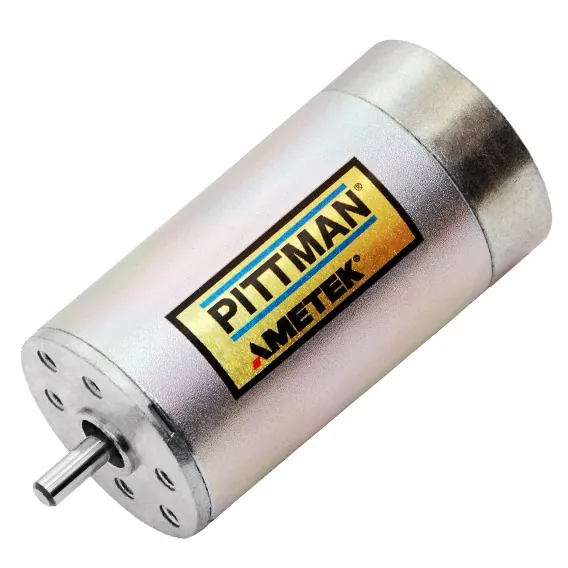

Haydon Kerk Pittman DC040B Brushed DC Motor (48 V / 8,000 rpm)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: DC040B
Haydon Kerk Pittman (AMETEK, USA) DC040B is a high-power-density Ø40 mm brushed DC motor in six windings: max terminal voltage 48 V, mechanical speed to 7,000-8,000 rpm, continuous stall torque 0.017-0.081 Nm (2.4-12 oz-in), peak torque 0.086-0.50 Nm (12-71 oz-in) at only 200-440 g; rare-earth magnets and ball bearings suit battery-powered mobile robots, pumps and actuators, and it stacks with G30A/G51A gearboxes as a gearmotor.
| Weight | 200-440 g (7.0-16 oz) |
| Windings | 6 variants (DC040B-1..6) |
| Max Speed | 7,000-8,000 rpm |
| Max Voltage | 48 V |
| Peak Torque | 0.086-0.50 Nm (12-71 oz-in) |
| Continuous Stall Torque | 0.017-0.081 Nm (2.4-12 oz-in) |
