Haydon Kerk Pittman Can-Stack Rotary Stepper Motors (Ø20-25.4 mm / 7.5°-15°)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: Can-Stack
Haydon Kerk Pittman (AMETEK, USA) can-stack rotary steppers are permanent-magnet can-type micro steppers: Z20000 Ø20 mm, 15° step, 0.46 Ncm (0.65 oz-in) holding / 0.12 Ncm detent; Z26000 Ø25.4 mm, 7.5°/15° step, 1.27 Ncm (1.8 oz-in) holding / 0.18 Ncm detent; ball or sleeve bearing versions suit gauge pointers, small valves and micro robot joints in low-cost open-loop positioning.

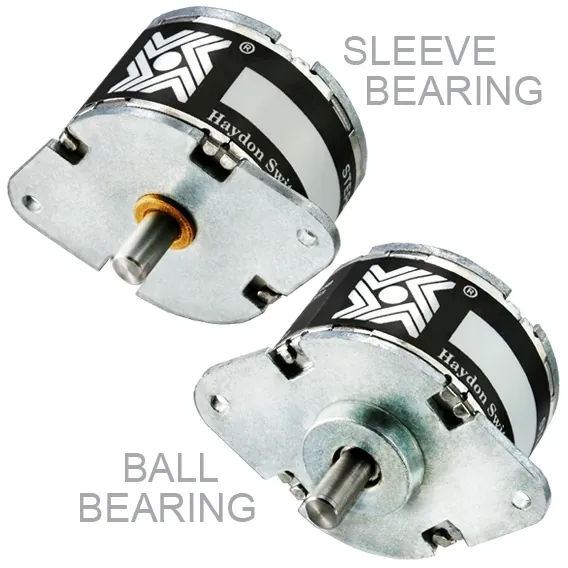

| Bearings | ball or sleeve bearing |
| Diameters | Ø20 mm (Z20000) / Ø25.4 mm (Z26000) |
| Step Angle | 7.5° / 15° |
| Detent Torque | 0.12-0.18 Ncm |
| Holding Torque | 0.46-1.27 Ncm (0.65-1.8 oz-in) |
