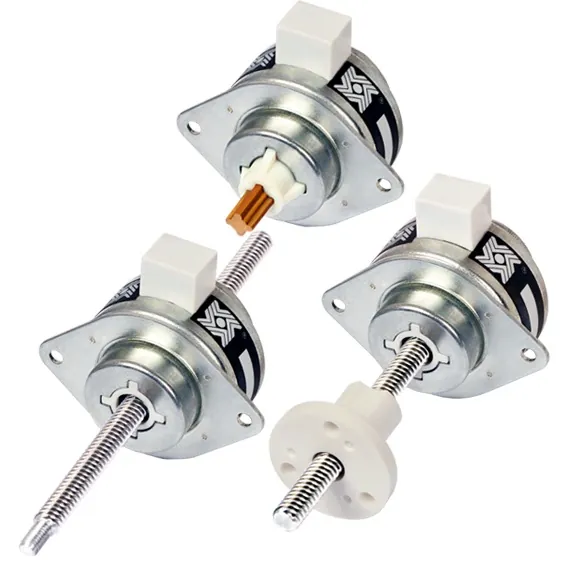

Haydon Kerk Pittman Can-Stack Stepper Linear Actuators (Ø15-37 mm / 260 N)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: Can-Stack
Haydon Kerk Pittman (AMETEK, USA) can-stack linear actuators span Ø15-37 mm in six series (15000/Z20000/G4 19000/Z26000/G4 25000/G4 37000) with 3-100 µm travel per step, 7-260 N max force and strokes of 12.7-38.1 mm captive or up to 150 mm non-captive/external; captive, non-captive and external-drive screw formats suit optical focusing, microfluidic pumps and small robot end effectors.
| Stroke | 12.7-38.1 mm captive; up to 150 mm non-captive/external |
| Formats | captive / non-captive / external drive |
| Max Force | 7-260 N |
| Frame Sizes | Ø15-37 mm (6 series) |
| Travel Per Step | 3-100 µm |
