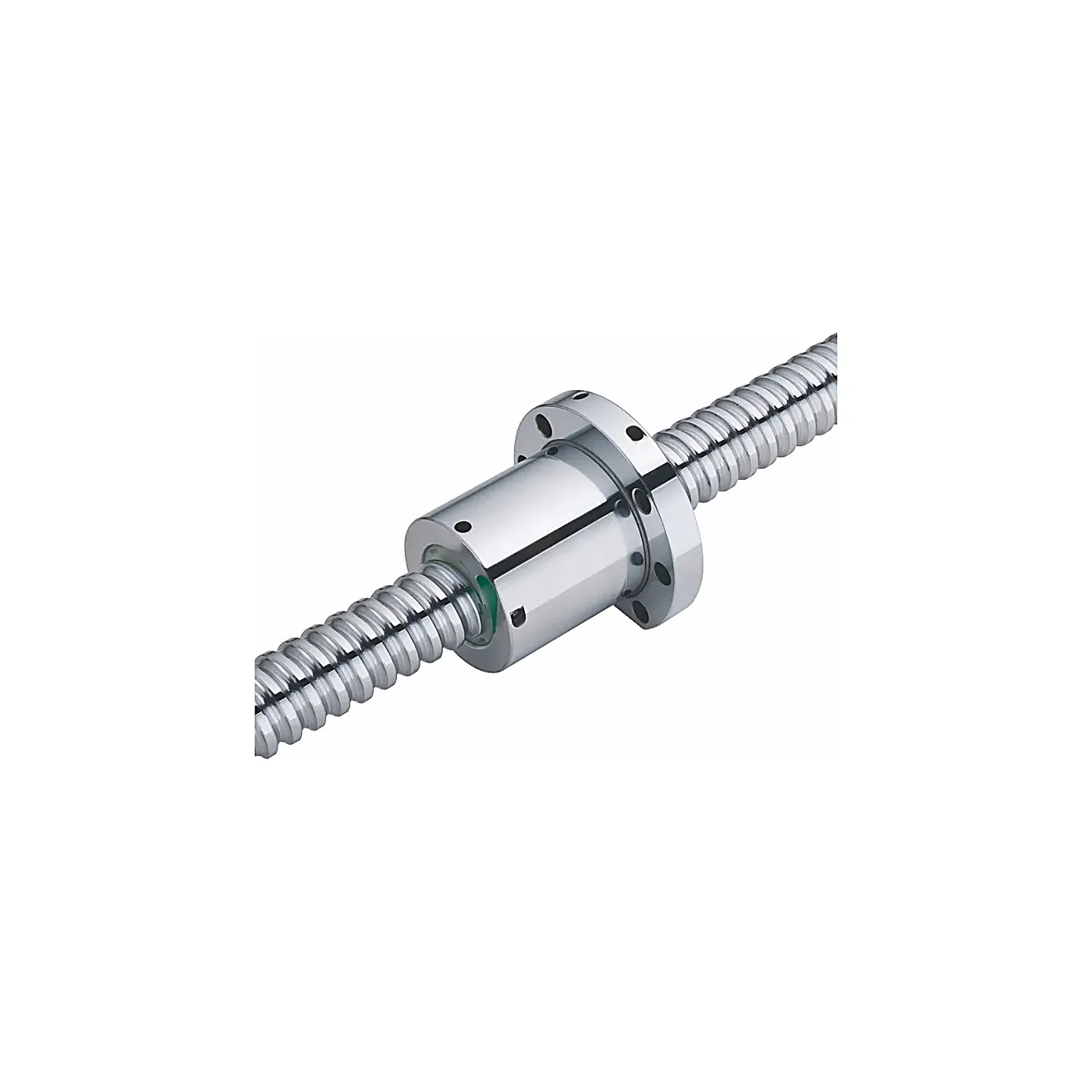

HIWIN Super S Series High-Speed Ballscrew (FSC Standard, Ø14-25)
Vendor: HIWIN
Product: Super S （FSC ）
HIWIN Super S series are high-speed quiet ballscrews with Dm-N up to 220,000, 5-7 dB lower running noise and 18-32% less space/weight; the FSC standard type covers Ø14-25 shafts with 8-20 mm leads, e.g. 20-8K5 at Ca 2960 kgf / C0a 6505 kgf / axial stiffness K 58 kgf/μm and 25-15K5 at Ca 1980 kgf / C0a 5730 kgf, series-wide Ca 920-2960 kgf and stiffness 24-63 kgf/μm, targeting humanoid robot linear joints, semiconductor equipment and high-speed precision drives.
| Dm N | up to 220,000 |
| Lead | 8-20 mm |
| Type | high-speed rolled/ground ballscrew |
| Models | FSC standard: 14-10K3 / 16-16K2 / 20-20K2 / 20-8K5 / 25-15K5 |
| Shaft Diameter | Ø14-25 mm |
| Dynamic Load Ca | 920-2960 kgf |
| Noise Reduction | 5-7 dB lower |
| Static Load C0a | 1790-6505 kgf |
| Axial Stiffness K | 24-63 kgf/μm |
| Space Weight Saving | 18-32% less |
