HIWIN DATORKER DSC Series Strain Wave Gear Component Sets (Size 11-40)
Vendor: HIWIN
Product: DATORKER DSC

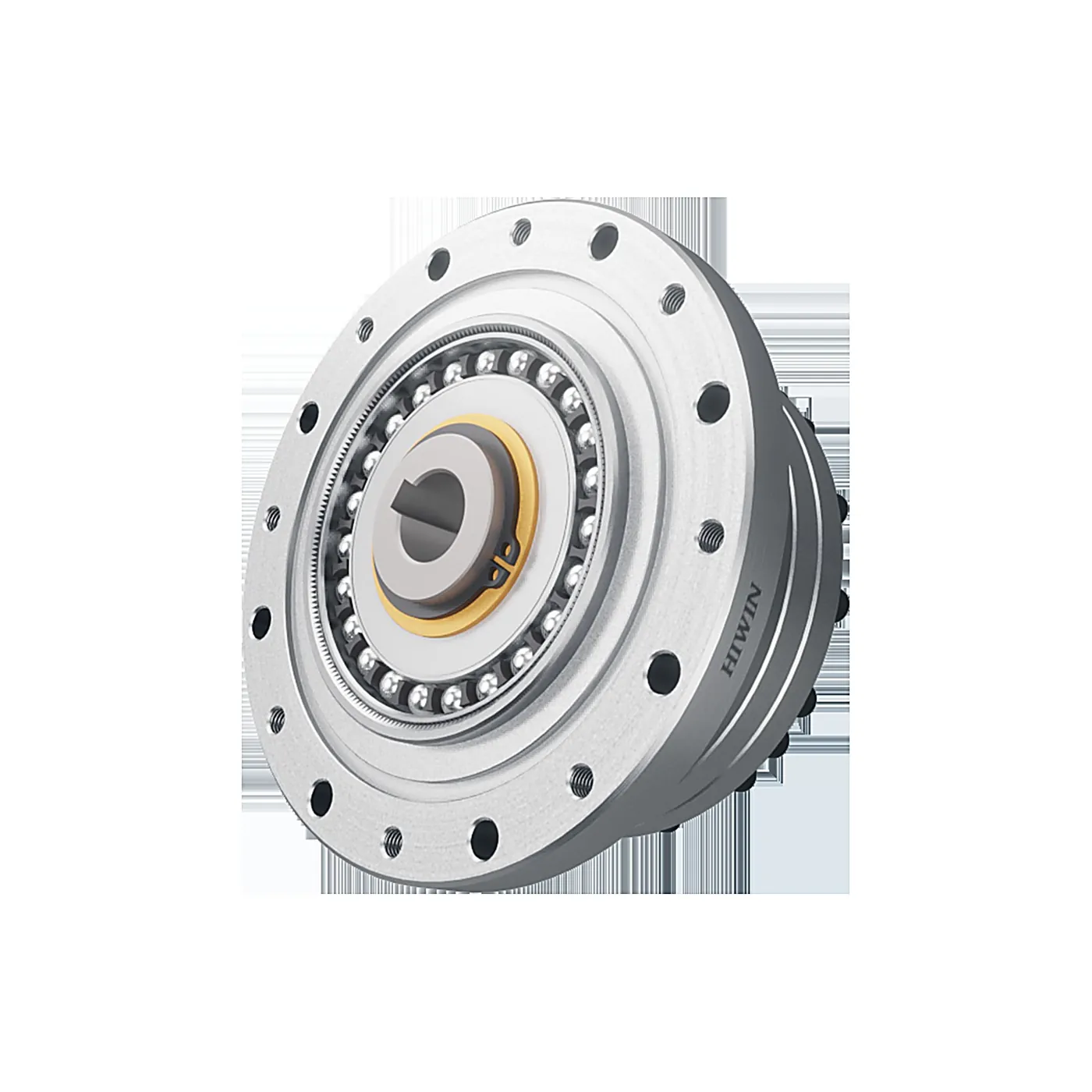

HIWIN (2049.TW) DATORKER DSC series are standard strain wave gear component sets in sizes 11-40 with 50-160 ratios, 3.5-294 N·m rated torque at 2000 r/min input, peak start/stop torque up to 647 N·m, instantaneous permissible torque up to 1180 N·m, max input speed 8500 r/min, angular transmission accuracy ≤1 arcmin (ratio ≥80), backlash down to 5 arcsec and rated life 7000 h (L10) / 35000 h (L50); the family adds lightweight (-40% weight, 36 mm hollow), heavy-load (+30% torque, 10000 h) and rotary-actuator (±6 arcsec repeatability) variants for humanoid robot joints and precision automation.
| Type | strain wave (harmonic) gear component set |
| Sizes | 11 / 14 / 17 / 20 / 25 / 32 / 40 |
| Accuracy | angular transmission accuracy ≤1 arcmin (ratio ≥80) |
| Backlash | 24-5 arcsec by size/ratio |
| Rated Life | 7000 h (L10) / 35000 h (L50) |
| Rated Torque | 3.5-294 N·m @2000 r/min |
| Max Input Speed | 8500 / 7300 / 6500 / 5600 / 4800 / 4000 r/min by size |
| Reduction Ratio | 50 / 80 / 100 / 120 / 160 |
| Peak Torque Start Stop | up to 647 N·m |
| Instantaneous Max Torque | up to 1180 N·m |
