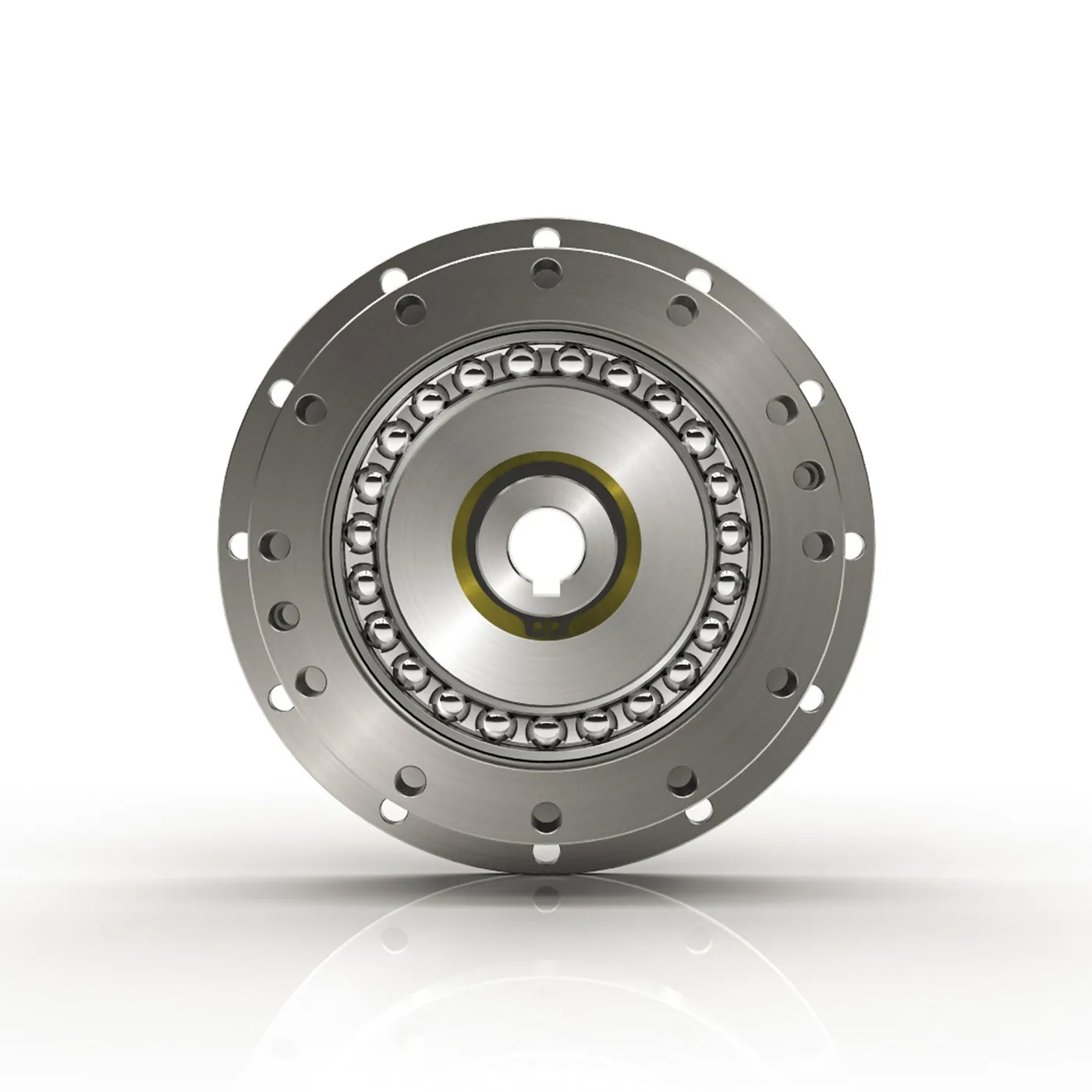

Harmonic Drive SHG-2A Silk-Hat Strain Wave Precision Component Set
Vendor: Harmonic Drive
Product: SHG-2A （ /Silk-Hat）
Harmonic Drive is the inventor and global leader of strain wave (harmonic) gearing. The SHG-2A silk-hat component set (wave generator, flexspline, circular spline, output flange) is axially shorter than the cup-type CSG, spanning 10 sizes 14-65 with ratios 50-160: rated torque (L10) 7-1,236 N·m, repeated peak 23-3,419 N·m, momentary peak 46-6,175 N·m, backdriving start torque only 2.2-180 N·m, standard accuracy 1 arcmin (1.5 for size 14), zero backlash, torsional stiffness K1 0.47-54 x10^4 N·m/rad at 0.11-7.04 kg - ideal for axially constrained precision joints in humanoid/cobot shoulders, elbows and wrists.
| Mass | 0.11-7.04 kg |
| Type | strain wave (harmonic) precision reducer, silk-hat (flat) component set with output flange |
| Sizes | 14 / 17 / 20 / 25 / 32 / 40 / 45 / 50 / 58 / 65 |
| Backlash | zero backlash; standard accuracy 1 arcmin (size 14: 1.5 arcmin) |
| Applications | humanoid/cobot joints with limited axial space, semiconductor & optics equipment, precision automation |
| Reduction Ratio | 50 / 80 / 100 / 120 / 160 (size 14: 50-100; sizes 50-65: 80-160) |
| Rated Torque L10 | 7-1,236 N·m |
| Backdriving Torque | 2.2-180 N·m |
| Repeated Peak Torque | 23-3,419 N·m |
| Momentary Peak Torque | 46-6,175 N·m |
| Torsional Stiffness K1 | 0.47-54 x10^4 N·m/rad |
