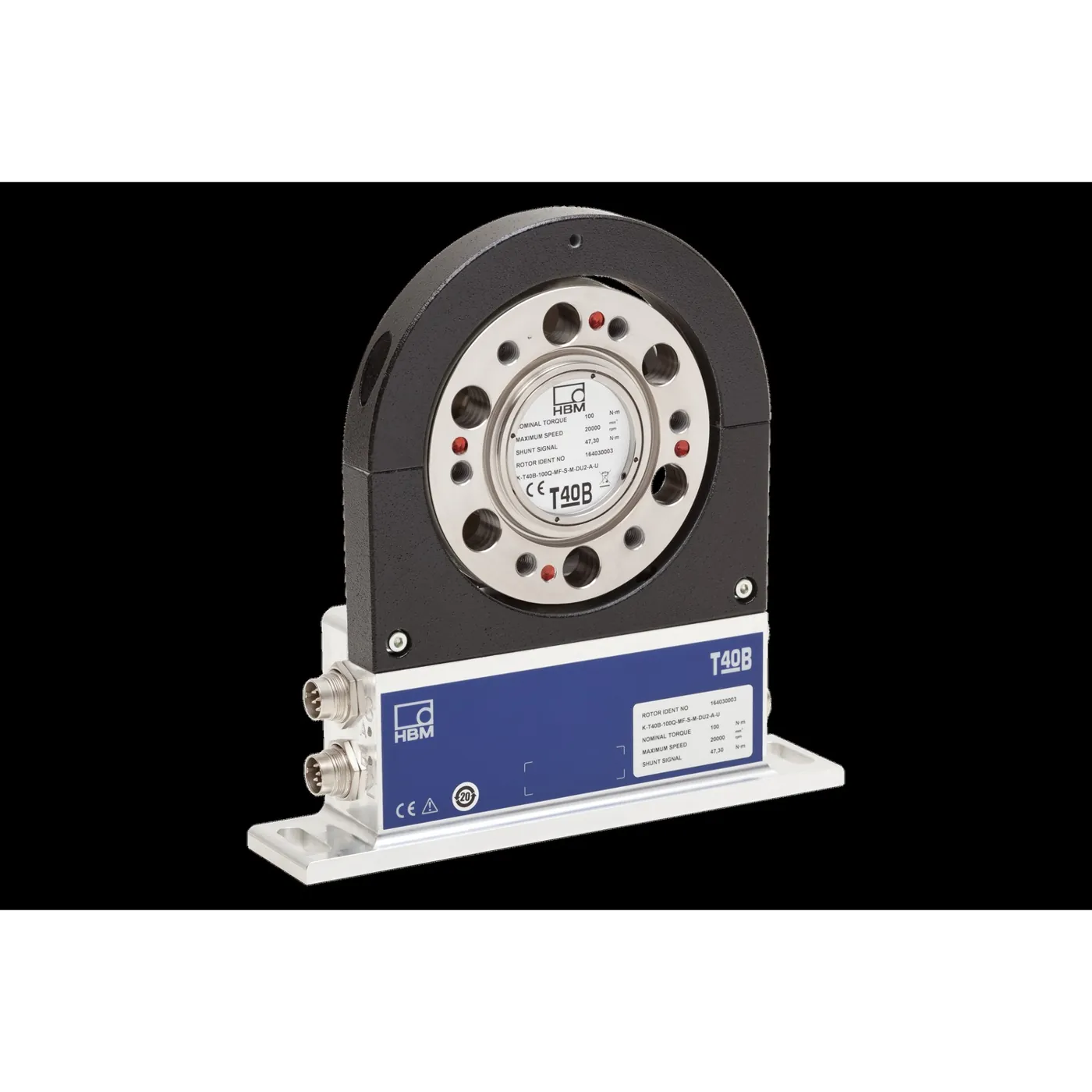

HBK (HBM) T40B Torque Flange

Vendor: HBK (HBM)

Product: T40B Torque Flange

HBK (formerly HBM, Germany) is the benchmark in test & measurement and torque sensing. The T40B is a low-inertia torque flange with 0.05% accuracy class (linearity incl. hysteresis), nominal torques from 50 N·m to 10 kN·m and speeds up to 24,000 rpm. Non-contact power supply and digital transmission make it maintenance-free; TIM-EC (EtherCAT) and TIM-PN (PROFINET) interface modules plus optional magnetic speed measurement with reference pulse suit e-drivetrain, driveline R&D and end-of-line test benches.
