Haydon Kerk Pittman Hybrid Stepper Linear Actuators (16000–87000 Series)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: Hybrid Stepper Linear Actuator (16000–87000 )

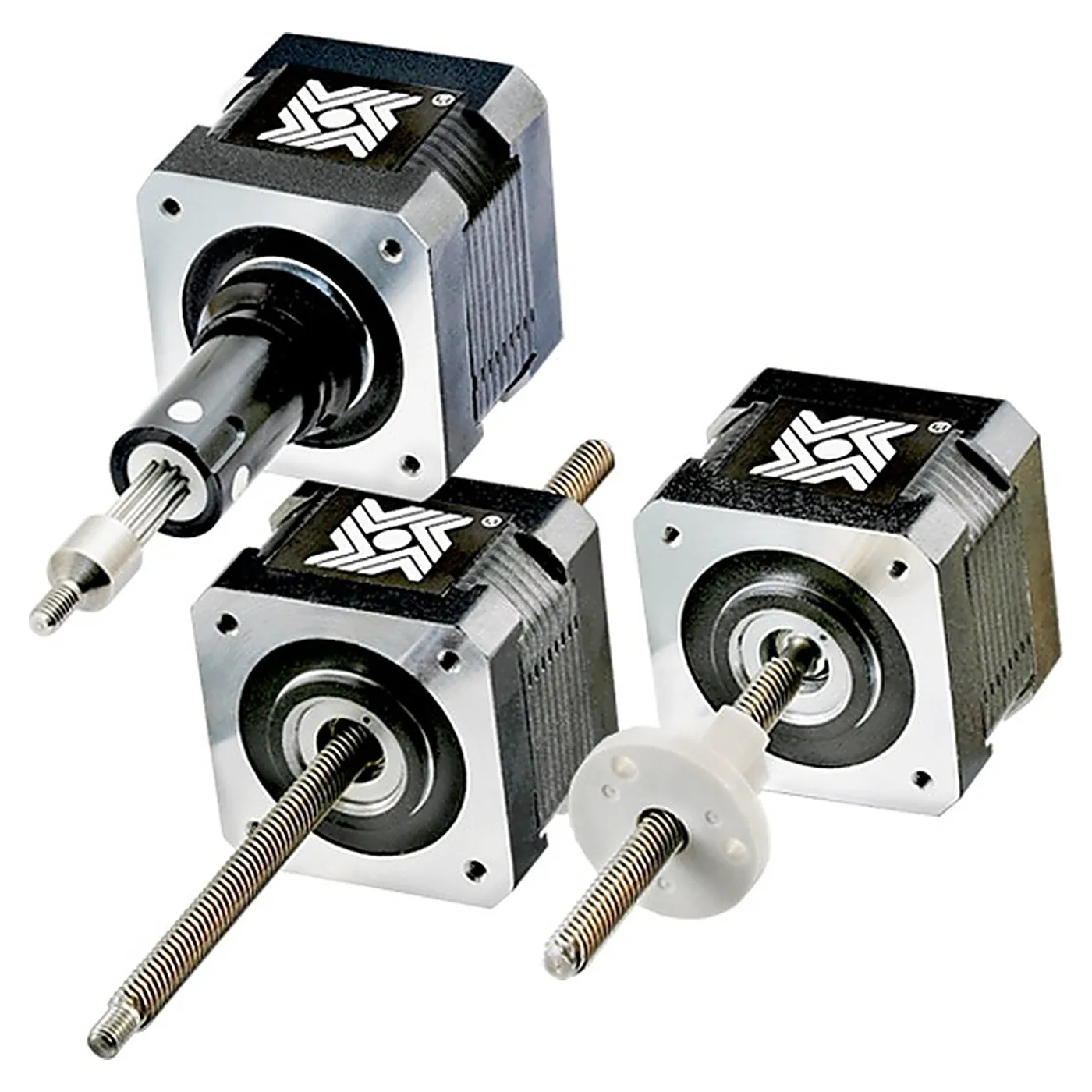

Haydon Kerk Pittman (AMETEK) hybrid stepper linear actuators convert hybrid stepper rotation into linear motion via a stainless-steel precision modified ACME lead screw / direct-drive rotor nut, in Captive, Non-Captive and External configurations. Range spans Size 6–Size 34 (16–87 mm frame), 1.5–127 µm travel per step, 2–2224 N max force, 12.7–63.5 mm captive stroke and up to 400–500 mm non-captive/external stroke, for medical, semiconductor and lab-automation precision positioning.
| Type | hybrid stepper linear actuator (captive / non-captive / external) |
| Screw | stainless steel precision modified ACME lead screw, direct-drive rotor nut |
| Max Force | 2 – 2224 N |
| Frame Sizes | Size 6 / 8 / 11 / 14 / 17 / 23 / 34 (16–87 mm) |
| Stroke Captive | 9.0 – 63.5 mm |
| Travel Per Step | 1.5 – 127 µm |
| Stroke Non Captive External | up to 200 – 500 mm |
