Haydon Kerk Pittman Can-Stack Linear Stepper Actuators (15000–37000 Series)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: Can-Stack Linear Stepper Actuator (15000–37000 )

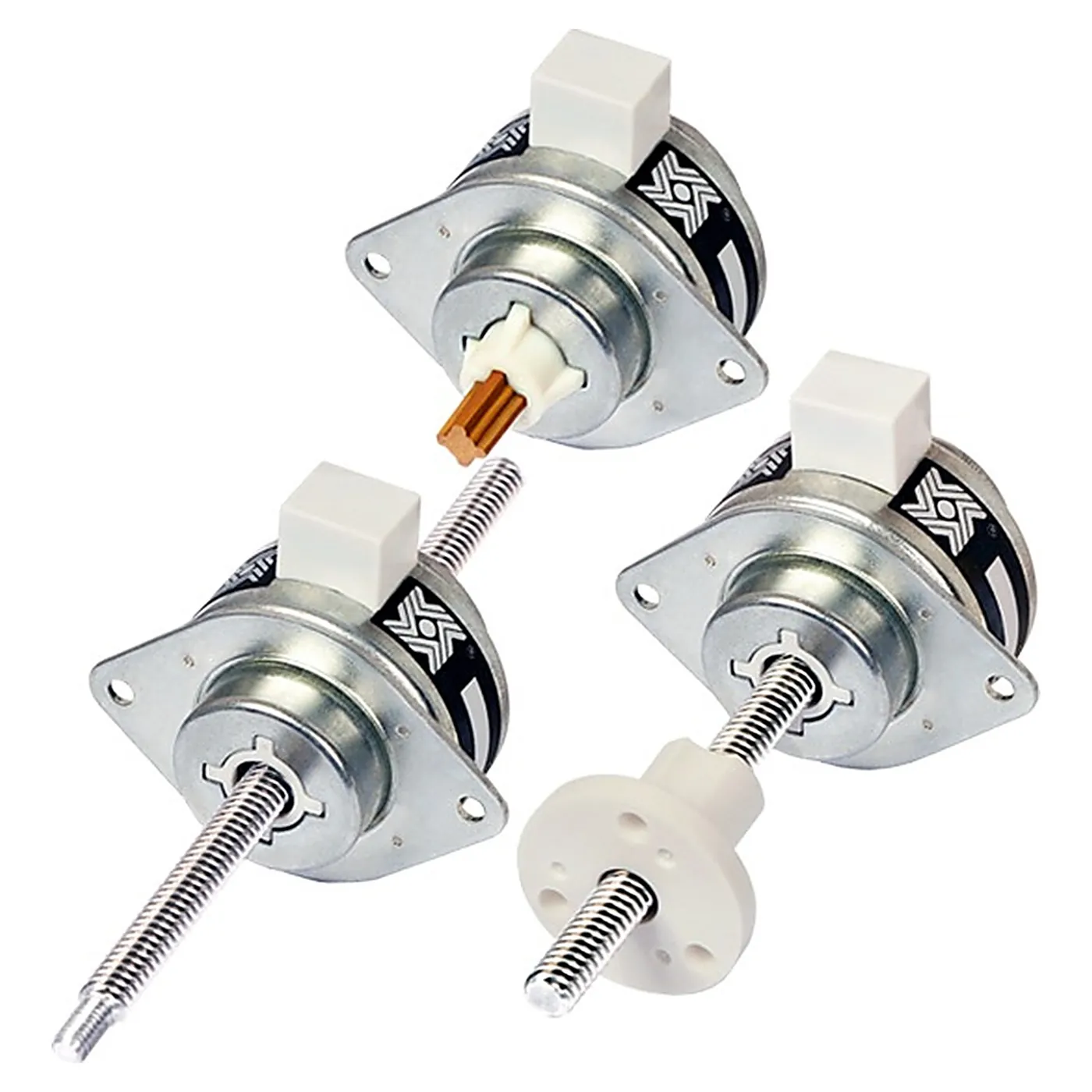

Haydon Kerk Pittman (AMETEK) can-stack linear stepper actuators use a low-cost can-stack stepper driving a lead screw for compact, cost-effective linear motion in Captive and Non-Captive/External forms. Diameters span 15–36 mm (0.59–1.4 in), 6–100 µm travel per step, 3–260 N max force, 12.7–38.1 mm captive stroke and up to 150 mm non-captive/external stroke, suited to instrumentation, valve control and space-constrained automation.
| Type | can-stack linear stepper actuator (captive / non-captive / external) |
| Diameters | 15 / 20 / 25 / 26 / 36 mm (0.59–1.4 in) |
| Max Force | 3 – 260 N |
| Stroke Captive | 12.7 – 38.1 mm |
| Travel Per Step | 6 – 100 µm |
| Stroke Non Captive External | up to 150 mm |
