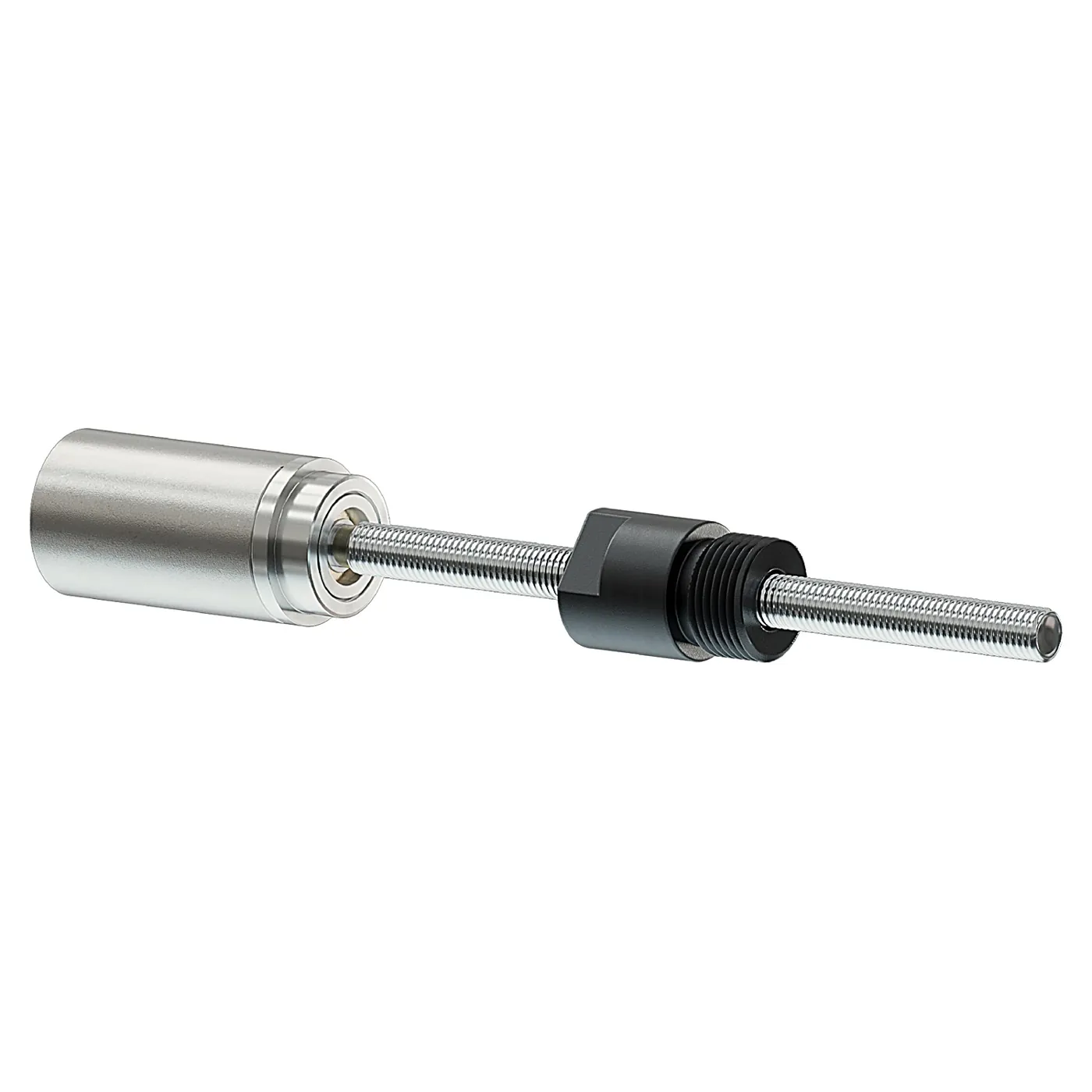

FAULHABER 06L/08L/10L Series Precision Linear Actuator Components
Vendor: FAULHABER (Germany)
Product: 06L/08L/10L （ / ）
FAULHABER (Germany) linear actuators convert coreless DC / brushless rotary motion into linear travel via precision lead or recirculating ball screw nuts: 06L (6 mm dia, 3-25 N continuous axial force), 08L (8 mm, 4-40 N) and 10L (10 mm, 5-200 N; high-load HL version 100-200 N), with reduction ratios 4-1024; trapezoidal lead screw and ball screw nut options (ball version for higher speed/efficiency), custom stroke and length, paired with 0308-1028 DC/BL micro motors (up to 90,000 r/min) and planetary/spur gearheads (i 4-4096, zero-backlash versions), used in robotics, laboratory automation, medical and optical positioning.
| Type | geared / direct-drive precision linear actuator (lead or ball screw nut) |
| Sizes | 06L / 08L / 10L (HL high-load & SL standard-load variants) |
| Motors | coreless DC (0816-1024 SR), BLDC (0824-1028 B, up to 90000 r/min), stepper direct-drive |
| Options | custom stroke/length, recirculating ball nut, encoder & drive electronics |
| Diameter | 6 / 8 / 10 mm |
| Gearheads | planetary 08/1-10/1 i 4-4096 (60-100 mNm), spur 08/2-08/3 (zero backlash) |
| Reduction Ratio | 4-1024 |
| Continuous Axial Force | 3-25 N (06L); 4-40 N (08L); 5-200 N (10L, HL 100-200 N) |
