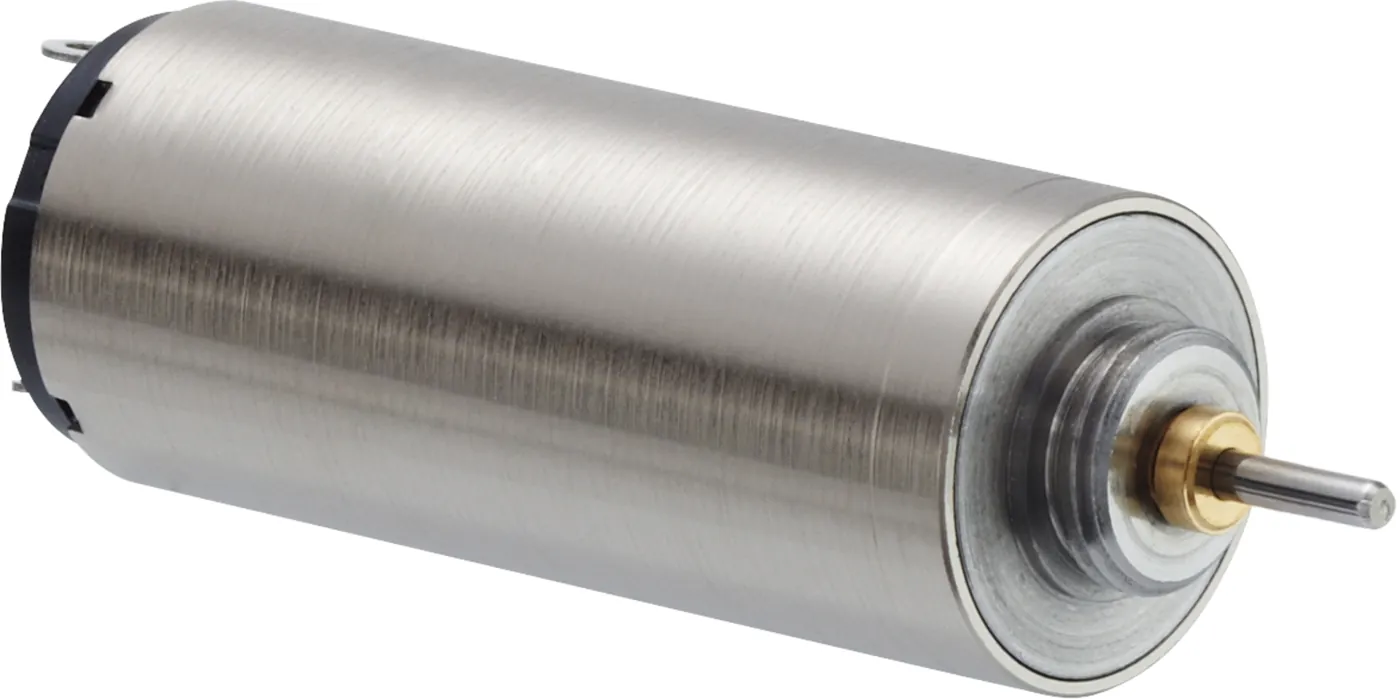

FAULHABER Series 1024 SR Coreless DC Micromotors

Vendor: FAULHABER (Germany)

Product: 1024 SR

The FAULHABER 1024...SR series are Ø10 mm coreless-winding DC micromotors: 9 V nominal (3-12 V across the series), no-load speeds to 12900 rpm, rated torque up to 1.7 mNm and stall torque up to 5.1 mNm at 82% peak efficiency, weighing just 10.8 g. Rotor inertia 0.12 gcm² and a 3.5 ms mechanical time constant give very fast dynamics; nickel-plated steel housing, -30 to +85 °C operation, stackable with planetary gearheads and encoders for dexterous hands, micro actuators and precision instruments.
