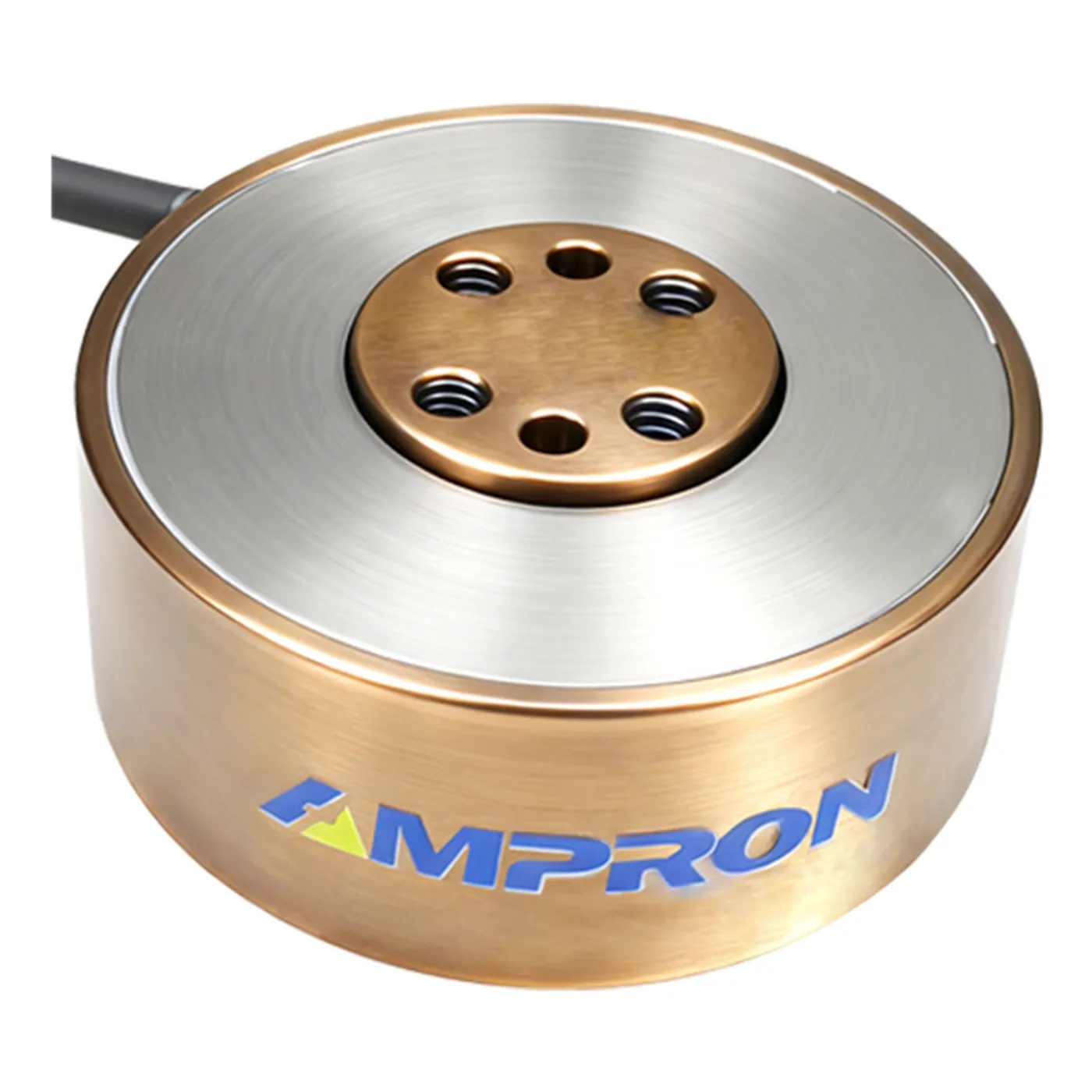

Ampron FSM6-E50 Low-Profile Stainless 6-Axis F/T Sensor
Vendor: Ampron
Product: FSM6-E50
Ampron FSM6-E50 low-profile stainless 6-axis F/T sensor, Ø50x19.5 mm; non-linearity ±0.2% F.S., 1/1000 resolution, repeatability ±0.1% F.S., crosstalk ±2% F.S.; ranges Fx/Fy 100-500 N, Fz 100-700 N, M 4-18 N·m; 1000 Hz, RS485/CAN/EtherCAT, IP65, -30~80°C, 500% F.S. safe overload; ultra-thin for dexterous hands and humanoid wrists.
| Range | Fx/Fy 100-500 N, Fz 100-700 N, M 4-18 N·m |
| Rating | IP65 |
| Supply | 12-32 VDC |
| Diameter | Ø50 mm, height 19.5 mm |
| Material | stainless steel |
| Sampling | 1000 Hz |
| Crosstalk | ±2% F.S. |
| Interface | RS485/CAN/EtherCAT |
| Insulation | >=2000 MOhm/50VDC |
| Resolution | 1/1000 |
| Nonlinearity | ±0.2% F.S. |
| Repeatability | ±0.1% F.S. |
| Safe Overload | 500% F.S. |
| Operating Temp | -30~80°C |
