Allied Motion Megaflux Frameless Direct-Drive Torque Motors

Vendor: Allied Motion

Product: Megaflux MF Series

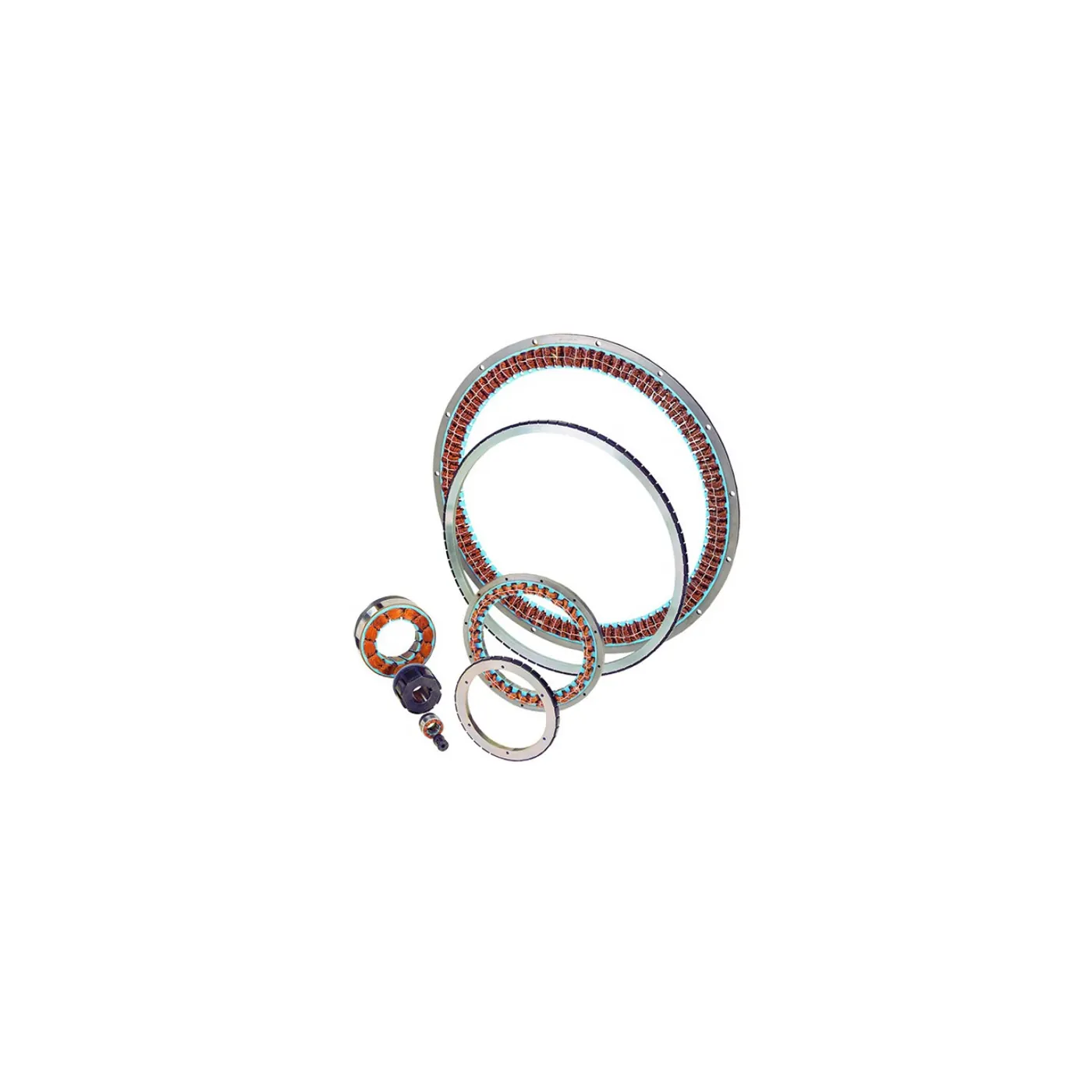

Megaflux is a high-torque-density family of frameless brushless direct-drive torque motors with 12 stator frame diameters from 60 to 792 mm and five stack lengths each; continuous stall torque spans 0.29-1,875 N·m with 48/150/300 VDC WYE windings; computer-optimized for maximum torque density and minimal cogging, the large through-bore passes cabling, piping or optical beams and the motors integrate directly into mechanisms, eliminating couplings and gear backlash for robot joints, gimbals and precision rotary tables.
