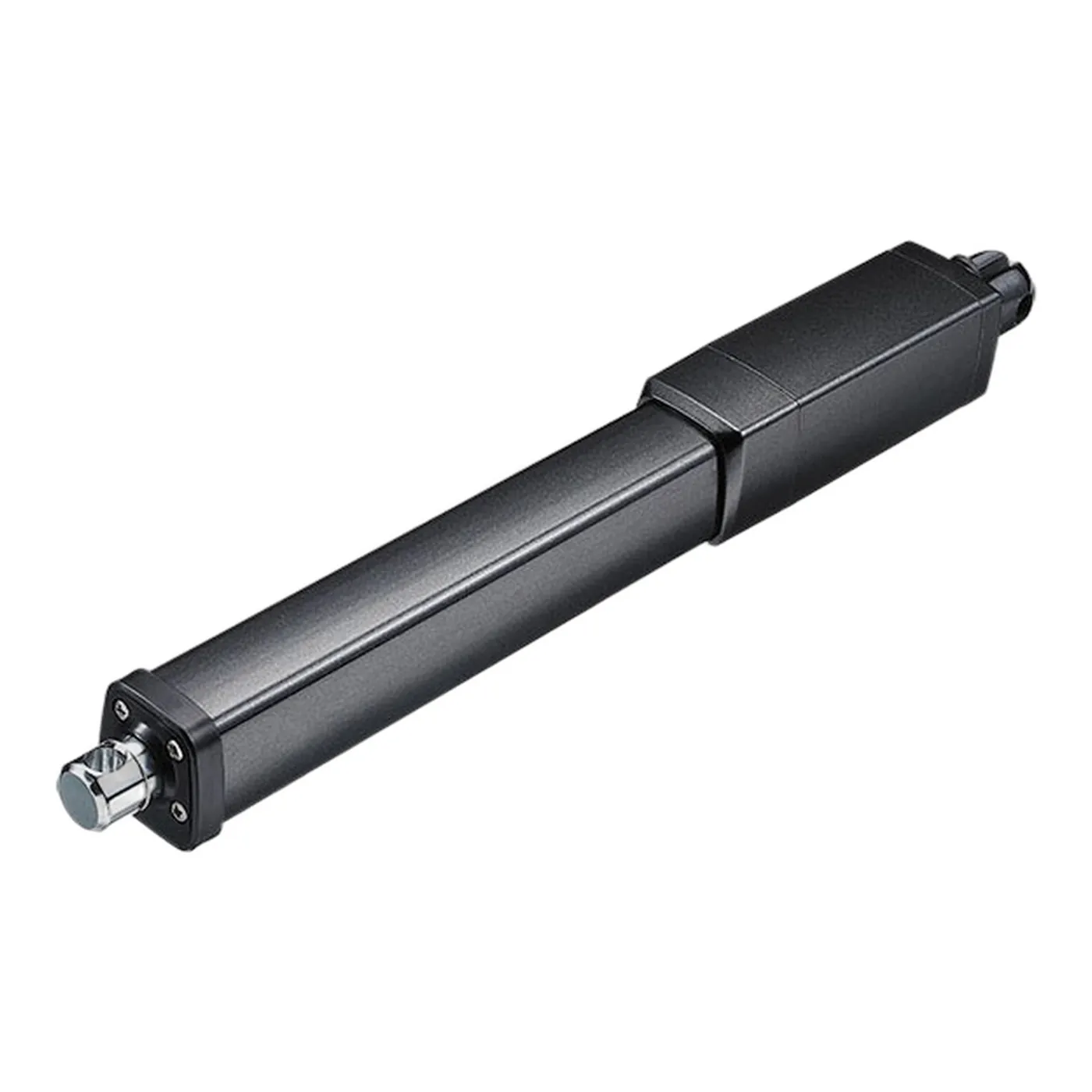

TiMOTION JP3 Industrial Linear Actuator
Vendor: TiMOTION
Product: JP3
The JP3 is TiMOTION’s inline linear actuator for industrial and agricultural equipment: up to 2,000 N force, 20-1000 mm stroke, 3.5 mm/s at max load and 23.5 mm/s no-load speed, 12/24 V DC (PTC option), IP69K (static) ingress protection, UL73 certified, -5 to +65°C operation, with optional dual NPN Hall sensors for position feedback and synchronization.
| Ip | IP69K (static) |
| Cert | UL73 |
| Temp | -5 - +65°C |
| Force | 2,000 N |
| Speed | 3.5 mm/s / 23.5 mm/s |
| Stroke | 20 - 1000 mm |
| Voltage | 12/24 V DC (PTC ) |
| Feedback | NPN Hall sensor (5-36V) ×2 |
| Retracted | ≥ + 217 mm |
