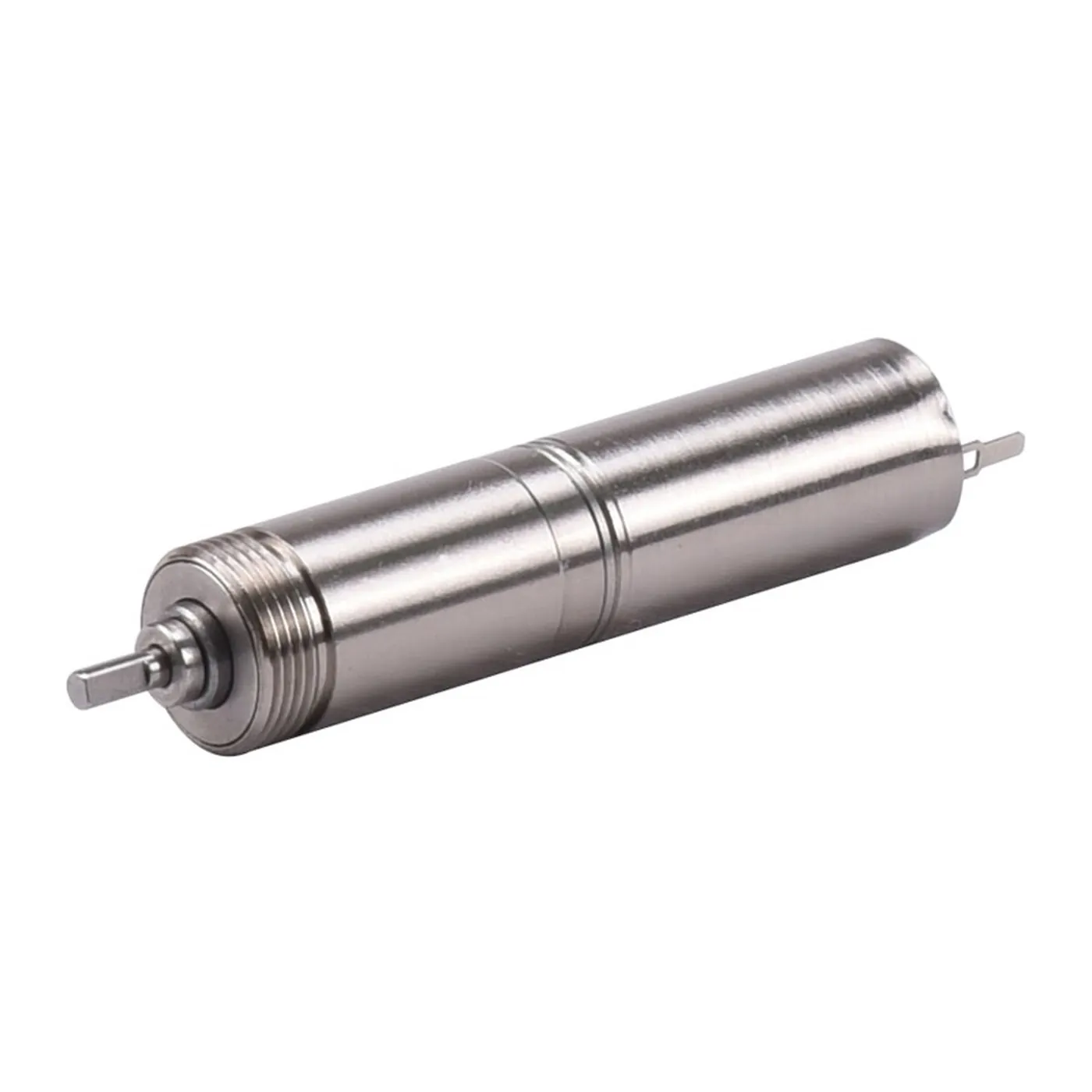

MOONS' DCU Series Coreless Brushed DC Motors
Vendor: Mingzhi Electronics
Product: DCU
MOONS' DCU series coreless brushed DC motors span Ø8-24 mm with 0.3-9.5 W rated power and no-load speed up to 16,000 rpm. The ironless cup rotor eliminates cogging and iron loss for high acceleration and low inertia, and the self-supporting cup winding is protected by invention patent ZL201510121440.7. DCU08017 weighs only 7.1 g; gearbox, encoder and voltage variants suit frequent start-stop handheld devices and robot end-effectors.
| Type | coreless brushed DC motor |
| Rotor | ironless hollow-cup, zero cogging |
| Patent | ZL201510121440.7 self-supporting cup winding |
| Example | DCU08017: 6 Vdc, 0.3 W, 16000 rpm, 7.1 g |
| Options | gearbox + incremental magnetic/optical encoder |
| Diameter | 8-24 mm |
| Rated Power | 0.3-9.5 W |
| No Load Speed | up to 16000 rpm |
